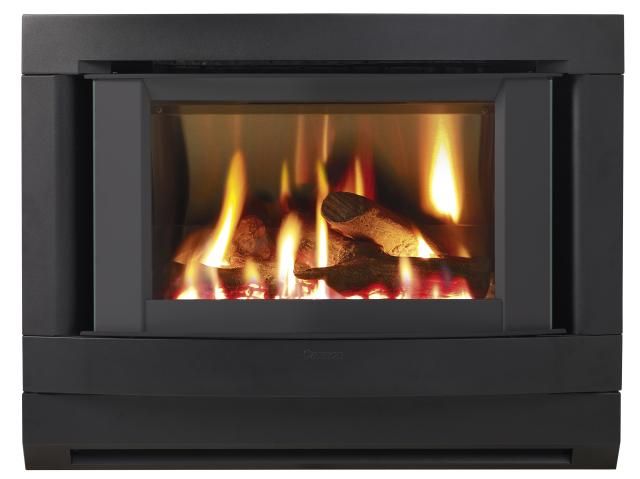

Canterbury Classic Inbuilt Gas Heater

SKU: CANTIB-SDEEB

Gently curving front glass that continues through the surround makes a refined, elegant statement.



Safe double glazed glass gives you an unobstructed view of your flickering log fire.



Replacing old gas or oil space heaters requires minimum effort as this particular model only has a depth requirement of 363mm. If adding the optional 50mm spacer kit, the depth required is reduced to an incredible 313mm.


An optional mock installation kit makes your heater suitable for installation with timber or plasterboard (combustible surfaces).


AUD 3,699.00
Details
Details
Type  Inbuilt
Colours available  Black
Gas types available
 Natural gas
 LP gas
Design features  Realistic eucalypt look logs
 Double glazed glass
 Enhanced flame effect
Controls  Electronic ignition and controls
Fan/heat settings  3 speed / 3 heat
Heat output  5.1kW / 18.36 MJ/h
Heats on average  80 square metres (80 m2)
Gas consumption  26 MJ/hr
Efficiency rating  3.1 stars
 (tested to AS 4553:2008)
Safety  4 continuously monitored safety systems
Specifications

  Fascia    Fireplace opening (brick &          masonry) Mock fireplace opening (use MOCKKIT12 option) for safe installation into combustible areas
Height (mm) 655  Min: 605
 Max: 640
 Min: 630
 Max: 640
Width (mm) 850  Min: 700
 Max: 760
 Min: 730
 Max: 760
Depth (mm) 125  Min: 363
 (includes 25mm clearance between flue spigot and rear brickwork).
 Max: N/A
 Min: 363
 (includes 25mm clearance between flue spigot and rear wall).
 Max: N/A

Refer to downloads tab for drawings.

Planning notes

  • Gas connection via a ½” copper compression fitting.
  • A 10 amp socket within 1.5m is required. Inbuilt models can be direct wired with an accessible isolating switch.
  • Maximum flue length is 4.5m.
  • If heater is being installed into a combustible area such as a timber or plasterboard mock fireplace, use optional accessory MOCKKIT12 mock installation kit.
  • If you have a larger opening than the maximum height indicated, a surround kit is recommended.
  • All Cannon inbuilt heaters MUST be flued. We recommend our own Inbuilt flue kit IBFLUEKIT accessory be used.
  • When selecting a heater, consideration must be given as to the construction of the building with regards to ventilation. This will affect the efficiency of the type of flue selected and how it will operate – e.g. high energy efficient rated homes have little allowance for the introduction of fresh air for combustion purposes, therefore issues can arise with reverse flow of air through a standard flue in these homes. Two storey extensions to existing homes can also reduce the performance of standard flues. Avoid installing standard flue heaters on external perimeter walls of high pitched roof buildings to reduce the possibility of reversed air flow through the standard flue. If in doubt always select Powerflued models as these are not affected by these issues.
